The Toyota RAV4 weighs between roughly 2,400 and 4,300 pounds, depending on the model year, trim, and whether it’s gas, hybrid, or the plug-in Prime. That’s a wide range for one nameplate, and it’s not just a coincidence. Toyota has stretched, widened, and added tech to the RAV4 across five generations, and every one of those changes shows up on the scale.
Curb weight comes down mainly to three things: generation, drivetrain (FWD versus AWD), and powertrain. AWD models typically add 100 to 150 pounds over the equivalent FWD trim, since they carry a rear driveshaft and rear differential. The hybrid system adds another 250 to 400 pounds for the battery pack and second electric motor, and the Prime’s larger 18.1 kWh battery pushes weight up by close to 1,000 pounds over a base gas LE.
If you’re cross-shopping model years, or wondering if your roof rack or trailer setup can handle the load, the exact number matters more than the ballpark. This guide breaks down curb weight by year, generation, and trim, and looks at how that weight plays into fuel economy, towing, and payload.

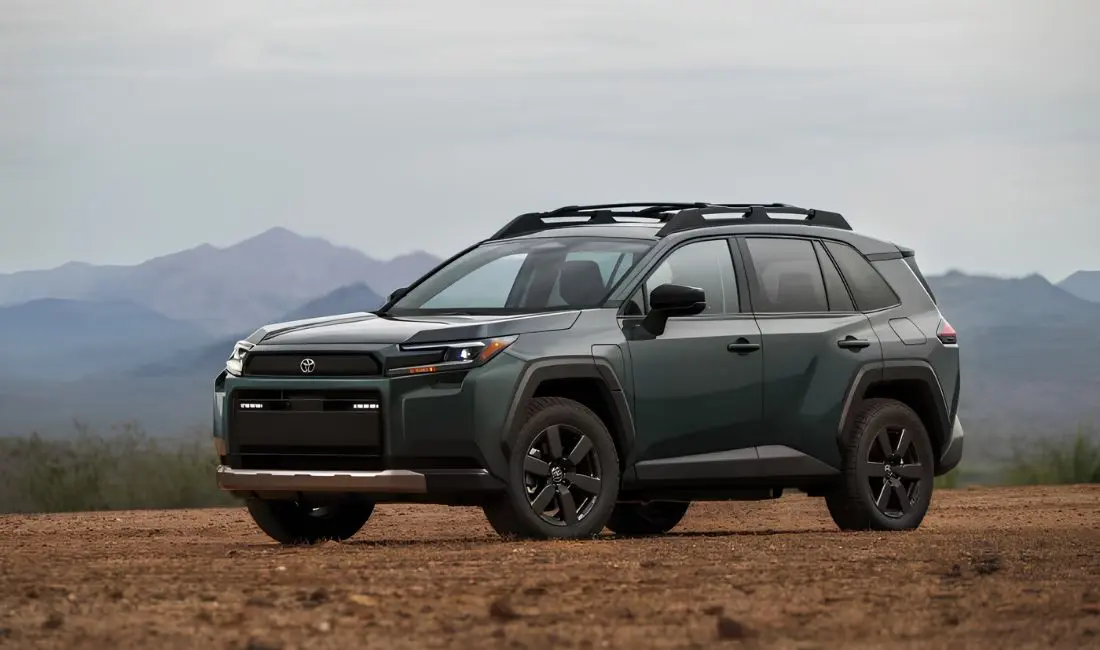

How Heavy Is Toyota RAV4?
Toyota RAV4 curb weight ranges from 2,400 to 4,300 lbs. The lightest examples are base first-generation models from the 1990s, and the heaviest is the current RAV4 Prime plug-in hybrid. Most gas-powered RAV4s on the road today weigh between 3,370 and 3,640 pounds curb weight, with hybrids running a few hundred pounds heavier.
The 2024 models arrive with two engine options as below:
- 2.5L 4-cylinder engine, with a maximum of 184 lb-ft of torque and 203 horsepower
- 2.5L 4-cylinder hybrid engine, with a maximum of 163 lb-ft of torque and 176 horsepower (219 combined system horsepower)
And each engine is compatible with multiple trims, hence the variations in the total weight:
- LE (2.5L gas, FWD): 3,370 pounds
- XLE (2.5L gas, FWD): 3,405 pounds
- Limited (2.5L gas, FWD): 3,485 pounds
- Adventure / TRD Off-Road (2.5L gas, AWD): 3,615 – 3,640 pounds
- LE Hybrid (AWD): 3,690 pounds
- Limited Hybrid (AWD): 3,800 pounds
The same trim and engine setups carry over for pre-2024 popular model years as well, though the weight range is not the same due to differences in features and generation:
- 2019 RAV4: 3,370 – 3,700 lbs
- 2013 RAV4: 3,300 – 3,700 lbs
- 2006 RAV4: 3,300 – 3,677 lbs
- 2001 RAV4: 2,700 – 2,900 lbs
- 1997 RAV4: 2,400 – 2,900 lbs
If you want to know the curb weight of the Toyota RAV4 (only the standard components are included, no additional features/modifications, or cargo capacity), the full chart for accurate measurements throughout the years is below:
RAV4 Weight By Generation, 1996 to 2024
| Years | Generation | Powertrain / Trim | Curb Weight (approx.) |
|---|---|---|---|
| 1996–2000 | 1st gen | 2 door to 4 door, FWD/AWD, 2.0L I4 | 2,400–2,900 lbs |
| 2001–2005 | 2nd gen | Base to Limited, 2.0L/2.4L I4 | 2,700–2,900 lbs |
| 2006–2012 | 3rd gen | Base I4 to Limited V6 | 3,300–3,700 lbs |
| 2013–2018 | 4th gen | LE to Limited, 2.5L I4 only | 3,300–3,700 lbs |
| 2019–2024 | 5th gen (gas) | LE to TRD Off-Road, FWD/AWD | 3,370–3,640 lbs |
| 2019–2024 | 5th gen (Hybrid) | LE to Limited, AWD only | 3,690–3,800 lbs |
| 2021–2024 | RAV4 Prime (PHEV) | SE, XSE, AWD only | 4,235–4,300 lbs |
The 3rd and 4th generation RAV4s land in almost the same weight band, even though the 3rd gen offered a 269 horsepower V6 that added 300 to 400 pounds over the four-cylinder version.
Also Read: Best Toyota SUVs
How Does RAV4 Weight Affect Its Efficiency And Towing?
The EPA states that an extra 100 pounds in a vehicle can reduce fuel economy by up to 2 percent, with a bigger effect on smaller vehicles than on trucks or full-size SUVs. The RAV4 Hybrid still rates around 39 mpg combined despite weighing 250 to 400 pounds more than the gas LE, since the electric motor and regenerative braking offset the added mass.
The Prime’s 18.1 kWh battery adds close to 600 pounds over the standard hybrid. Toyota mounted the battery under the floor to keep the center of gravity low, which limits the handling penalty from that extra weight.
The 2024 RAV4 LE FWD is rated for a maximum payload of about 1,230 pounds and a towing capacity of 1,500 pounds. The Adventure and TRD Off-Road AWD trims tow up to 3,500 pounds thanks to a reinforced frame and cooling system, even though they’re the heaviest gas trims. The RAV4 Hybrid tows up to 1,750 pounds, and the RAV4 Prime tows up to 2,500 pounds.
How To Reduce Or Manage Your RAV4’s Weight
- Remove roof racks, cargo boxes, or crossbars when you’re not using them. They sit high on the body and hurt aerodynamics more than their weight alone suggests.
- Clear out cargo you don’t need for daily driving, especially tools and sports equipment left in the back seat or trunk.
- Choose FWD over AWD if you don’t need the extra traction. It’s the lighter, more efficient option.
- Stick with the factory-recommended wheel size. Larger aftermarket wheels add unsprung weight, which affects handling more than static weight does.
- Avoid consistently loading the RAV4 near its maximum payload rating, since that puts extra strain on the suspension, brakes, and tires over time.
RAV4 vs Honda CR-V: Which Tows Better?
The Toyota RAV4 tows better than the Honda CR-V across every trim and powertrain. Base gas models are evenly matched, since a RAV4 LE, XLE, or Limited and a CR-V LX, EX, or EX-L are all rated for 1,500 pounds. The gap opens up once you compare hybrids and higher trims.
The RAV4 Hybrid tows up to 1,750 pounds, while the CR-V Hybrid (Sport, Sport-L, Sport Touring) is capped at 1,000 pounds. The RAV4 Prime plug-in hybrid tows up to 2,500 pounds, well above anything Honda offers in this class. The biggest difference is at the top of the range: the RAV4 Adventure and TRD Off-Road trims are rated to tow 3,500 pounds thanks to a reinforced frame and cooling system, while no CR-V trim, gas or hybrid, exceeds 1,500 pounds. If towing a small boat, ATV, or utility trailer is a priority, the RAV4 has more headroom across its lineup.
RAV4 Roof Rack Weight Limit
The Toyota RAV4’s factory roof rack is rated for about 165 pounds of total dynamic load on current (2019 and newer) models. That figure covers everything on the roof while driving, including the weight of the rack itself. Older generations were rated lower still: Toyota’s owner’s manual for the 2006 to 2012 RAV4 lists a factory roof rack limit closer to 100 to 102 pounds.
Aftermarket racks built for the mounting points, such as Prinsu or Victory 4×4 setups, are often rated much higher on their own, typically 300 to 600 pounds dynamic and up to 1,000 to 1,200 pounds static (parked). That number reflects the strength of the aftermarket rack itself, not an official increase to the RAV4’s roof structure, so the safer approach is to follow whichever limit is lower and check your specific model year’s owner’s manual before loading up a rooftop tent, cargo box, or multiple bikes.
You May Like: Toyota Prius Lifespan
RAV4 Tongue Weight Explained: Adventure vs Standard
Tongue weight, the downward force the trailer’s coupler puts on the hitch ball, scales directly with each RAV4 trim’s towing capacity. Standard trims like the LE, XLE, XLE Premium, and Limited, all rated to tow 1,500 pounds, have a maximum tongue weight of 150 pounds.
The Adventure and TRD Off-Road trims, rated to tow up to 3,500 pounds, carry a correspondingly higher maximum tongue weight of 350 pounds, the same 10 percent ratio scaled up.
In practical terms, that means a fully loaded utility trailer or small boat trailer near the standard trims’ 1,500-pound limit shouldn’t press down on the hitch with more than 150 pounds, while Adventure and TRD Off-Road owners towing closer to their 3,500-pound ceiling have more than double that margin before they risk overloading the rear suspension or causing the trailer to sway.
Frequently Asked Questions – RAV4 Weight
A base 2-door, FWD 1997 RAV4 is the lightest at around 2,400 to 2,600 pounds.
Payload capacity ranges from about 900 to 1,230 pounds depending on trim and drivetrain. Higher trims and AWD models are generally rated a bit lower than base FWD trims.
Yes. AWD adds a rear driveshaft and differential, making it 100 to 150 pounds heavier than the same trim in FWD.
Using standard 80 lb bags of concrete mix, a RAV4 rated for around 1,200 lbs of payload can safely carry about 10 to 12 bags. Factor in the driver’s weight first, since payload covers everyone and everything in the vehicle, not just cargo.
